Description

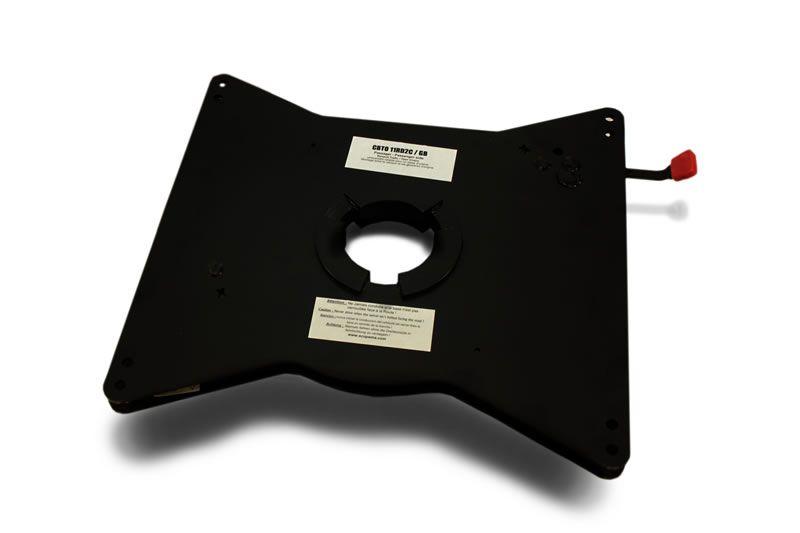

Manufactured in France by Scopema, the RIB swivel plate for campervans gets lots of praise on the various forums. In our own experience, we have found these seat swivels to be very robust and rattle-free.
The offset feature of this particular swivel means that the pivot point is offset from the centre by a few centimetres towards the handbrake side of their seat. This means that the seat finishes up facing backwards a bit further from the door. The main advantage is that seats with armrests will spin around more easily. If you have a double seat swivel on the passenger side you should choose the non-offset version, otherwise, there won't be enough room for both seats to swivel backwards.
To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily. Once the seat is facing the rear re-engage handbrake. For seats fitted with up/down height adjustment, you will find that you probably need to pump up the seat height to allow the seat to rotate without the grey plastic trim around the base catching on anything.
Notes on fitting:
There are 2 fixing pins under the original slider that will need to to be cut off and removed. Please also note on some vans it appears that the plastic handbrake covering rubs on the swivel and may need to be removed.
Features
- Swivel plate fits between the base and seat slider rails on normal seats
- Automatically locks in place facing forward for driving
- Pivot point is located offset from the centre
- European TUV safety approval
Compatibility
- Compatible with X82 Vauxhall Vivaro 2014-2018 / Renault Trafic 2014+ / Fiat Talento 2014+ / Nissan NV300 2014+
- Compatible with heated seats & airbags (wires can pass through the centre)
Product Specification
- Seat height increase: Approx 23mm
- Safety: European TUV safety approval
Includes
- Swivel plate
- Bolts to fit standard seat boxes
Specification
Manufactured in France by Scopema, these RIB seat swivels are highly rated for their solid build and rattle-free performance, they’re a popular upgrade in many camper conversions.
- Seat height increase: Driver: approx 43mm. Passenger: approx 23cm.
- Safety: European TÜV safety approval
- Swivel plate fits between the base and seat slider rails on normal seats
- Central pivot rotation
- Locks in forward position for driving
- Robust, rattle-free operation
- Includes all bolts required to fit to standard seats.
Compatibility
- Compatible with heated seats and airbags as wires can comfortably pass through the centre.
- Not compatible with electric seats (unless specifically stated in the product name.)
- Note on Driver Swivels: The driver swivel will not rotate fully if your van has a fixed double passenger seat, unless a swivel plate is also fitted underneath the double seat
How To Rotate The RIB Swivel
- To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily.
- If your seat has height adjustment, you may need to raise it slightly before rotation to avoid it catching on anything.
- If you have a plastic handbrake cover then you may have to remove it and replace with our fabric slip-on cover.
- Once the seat is facing the rear, re-engage handbrake.
